Overview
jugglr is an R package for validating and visualising juggling patterns expressed in siteswap notation. Create an object representing a siteswap sequence with the siteswap() function. This detects the siteswap notation type and returns an S7 object of the appropriate subclass: vanillaSiteswap, synchronousSiteswap, multiplexSiteswap, synchronousMultiplexSiteswap, or passingSiteswap, all of which inherit from an abstract Siteswap parent class. The print method for each subclass reports whether the pattern is valid, how many props it requires, and its period and symmetry.
The timeline() and ladder() functions can be used to visualise any siteswap pattern (whether the sequence is juggleable or not). The animate() function generates an animated GIF of a valid pattern using the Juggling Lab GIF server, which can be displayed in the Viewer pane or saved to a file.
Installation
You can install the development version of jugglr from GitHub with:
pak::pak("EllaKaye/jugglr")or via R-universe:
install.packages("jugglr", repos = "https://ellakaye.r-universe.dev")For a full introduction to the package, see get started vignette. For the full range of animation options, see the animation article.
Siteswap
Types of siteswap notation supported by jugglr, with examples:
- vanilla: 423
- synchronous: (4,4)(4x,4x), (4,2x)*
- multiplex: [54]24
- synchronous multiplex: (2,6x)([6x4x],2x)
- passing: <3p33|3p33> or <4.5 3 3 | 3 4 3.5>
Create an object with the siteswap() function:
library(jugglr)
ss423 <- siteswap("423")
ss423
#> ✔ '423' is valid vanilla siteswap
#> ℹ It uses 3 props
#> ℹ It is symmetrical with period 3Patterns that cannot be juggled are still Siteswap objects with the appropriate subclass. Their print method reports that they are not valid juggling patterns.
ss432 <- siteswap("432")
ss432
#> ✖ '432' is not a valid juggling pattern
#> ℹ Two or more throws land on the same beat (collision)Visualising the patterns
Plots
timeline() and ladder() work across all siteswap types, returning ggplot2 objects that can be further customised. The path of each prop is shown in a different colour. throw_data() returns the underlying data frame for use in custom visualisations.
timeline() shows the throws and catches of each prop over time, with a focus on the beat. ladder() additionally shows which hand throws and catches each prop.

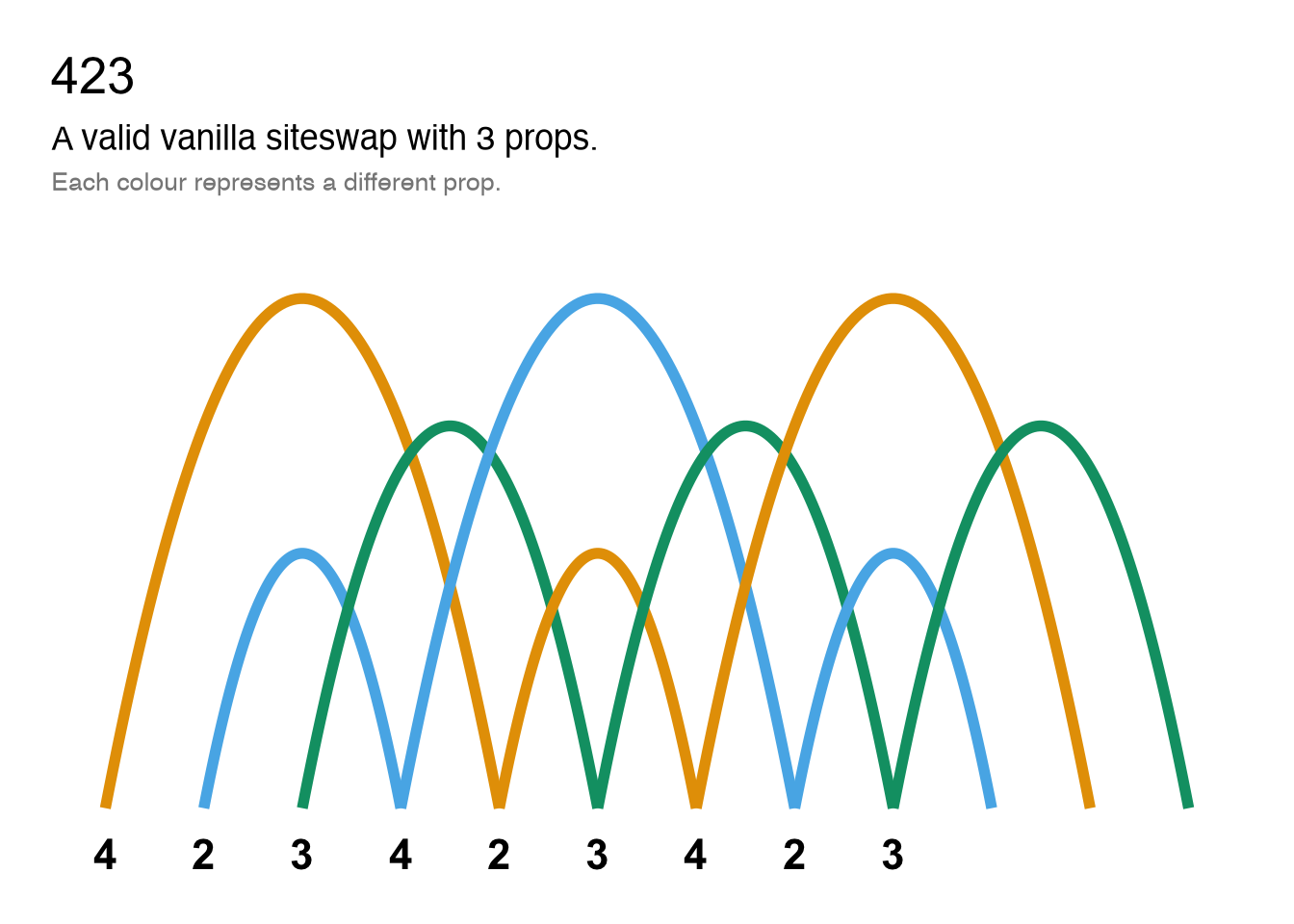

timeline(ss423)

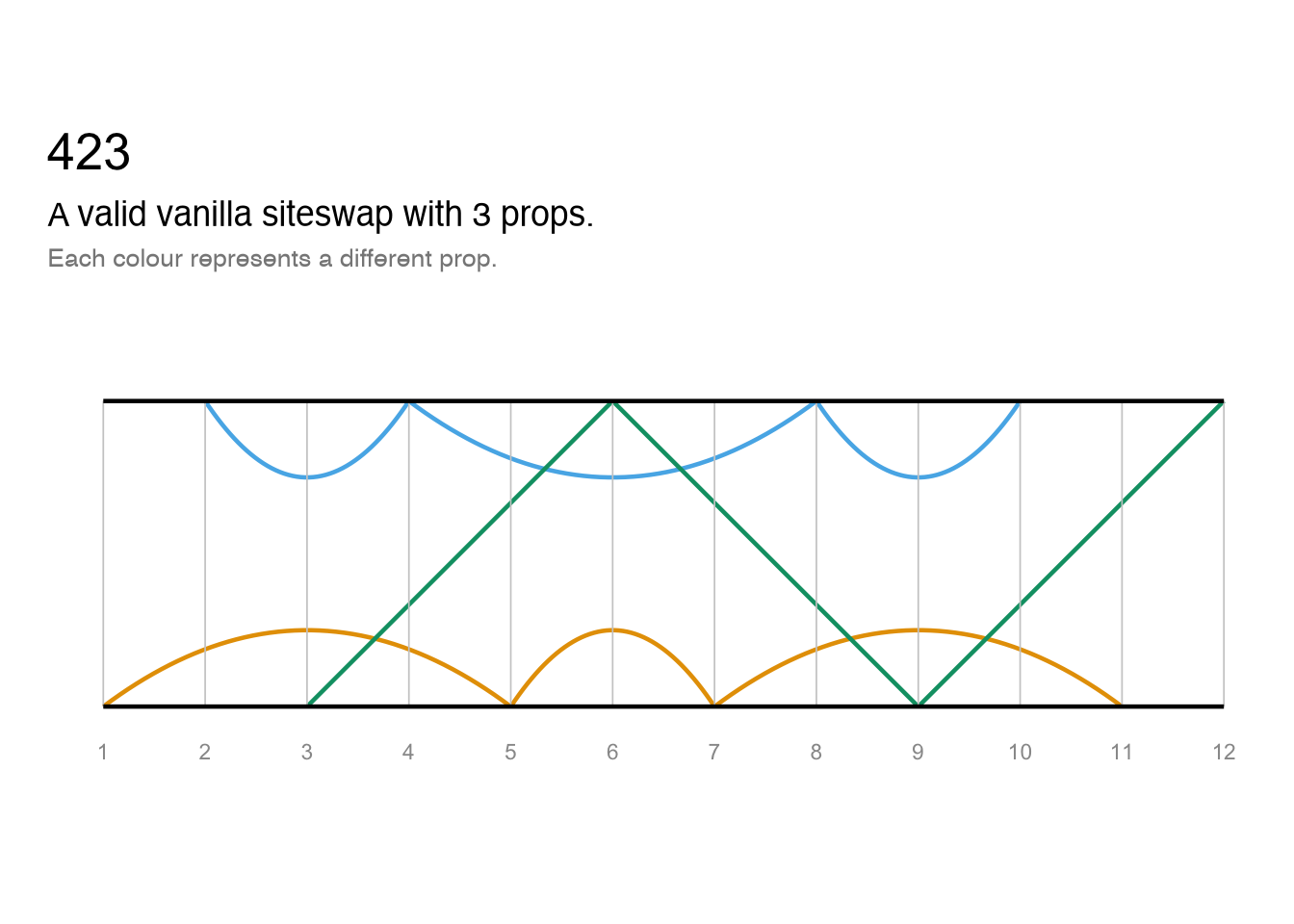

ladder(ss423)
These plots are also useful for understanding why non-valid sequences are not jugglable. We can see, for example, where two props would need to be caught at the same time (which is not permissible in vanilla siteswap), or where props are “created” or “destroyed” (i.e. when the sequence demands that a prop should be thrown or caught, but there’s not a prop available to do so).
timeline(ss432)
ladder(ss432)
Animation
jugglr provides a wrapper to the Juggling Lab GIF server. The animate() function accepts valid siteswap sequences as plain strings or any Siteswap object. Note that the Juggling Lab GIF server does not recognise fractional passing notation, so passingSiteswap objects using fractional notation cannot be animated.
If called in Positron or RStudio or a similar IDE, animate() will show the animation in the Viewer pane, otherwise in the browser. If a path argument is supplied, the animation will be saved to that location instead. Note that it can take several seconds for the animation to render, especially when the colors argument is specified.
