Plot a timeline diagram for a siteswap

Produces a timeline (arc) diagram showing the trajectory of each prop across beats. Each arc represents a throw, with height proportional to the throw value and coloured by prop using the colour-blind-friendly Okabe-Ito palette (a ggplot2 default scale is used beyond seven props). The x-axis labels show the throw heights from the siteswap sequence.

Usage

timeline(siteswap, n_cycles = 3, title = TRUE, subtitle = TRUE, ...)

Arguments

siteswap

A vanillaSiteswap, synchronousSiteswap, multiplexSiteswap, synchronousMultiplexSiteswap, or passingSiteswap object.

n_cycles

Number of complete cycles to simulate (default 3). A warning is issued if not all props appear within the simulated range.

title

Logical. If TRUE (default), adds a title showing the siteswap sequence. Set to FALSE to suppress; override with ggplot2::labs() on the returned plot.

subtitle

Logical. If TRUE (default), adds a subtitle showing the siteswap type and number of props. Set to FALSE to suppress; override with ggplot2::labs() on the returned plot.

...

Additional arguments passed to methods.

Value

A ggplot2 object.

Details

timeline() is an S7 generic. There are methods available for the following classes:

• jugglr::multiplexSiteswap

• jugglr::passingSiteswap

• jugglr::synchronousMultiplexSiteswap

• jugglr::synchronousSiteswap

• jugglr::vanillaSiteswap

See Behaviour by siteswap type section below for details on the differences between the resulting plots.

The result is a standard ggplot2 object, so beyond the title and subtitle toggles you can modify it by adding any ggplot2 function, for example ggplot2::labs() or ggplot2::scale_colour_manual().

Behaviour by siteswap type

• Vanilla and multiplex patterns are drawn single-sided, with all arcs above a single baseline. The x-axis labels are the throw heights, and multiplex labels keep their slot brackets (for example [54]).

• Synchronous and synchronous multiplex patterns are drawn two-sided: one hand's arcs sit above a faint centre line and the other hand's arcs sit below it. Each hand gets its own x-axis labels, and the subtitle notes the two-sided layout.

• Multiplex patterns (synchronous or not) that throw two or more identical props on the same beat fan those arcs to slightly different peak heights, so otherwise-overlapping throws render as concentric parabolas.

• Passing patterns are drawn with one lane per juggler; passes arc between lanes. Fractional notation offsets the beat positions accordingly.

See also

The siteswap constructors, e.g. siteswap() and vanillaSiteswap().

Other siteswap visualisation: ladder(), throw_data()

Examples

# Vanilla: single-sided arcs

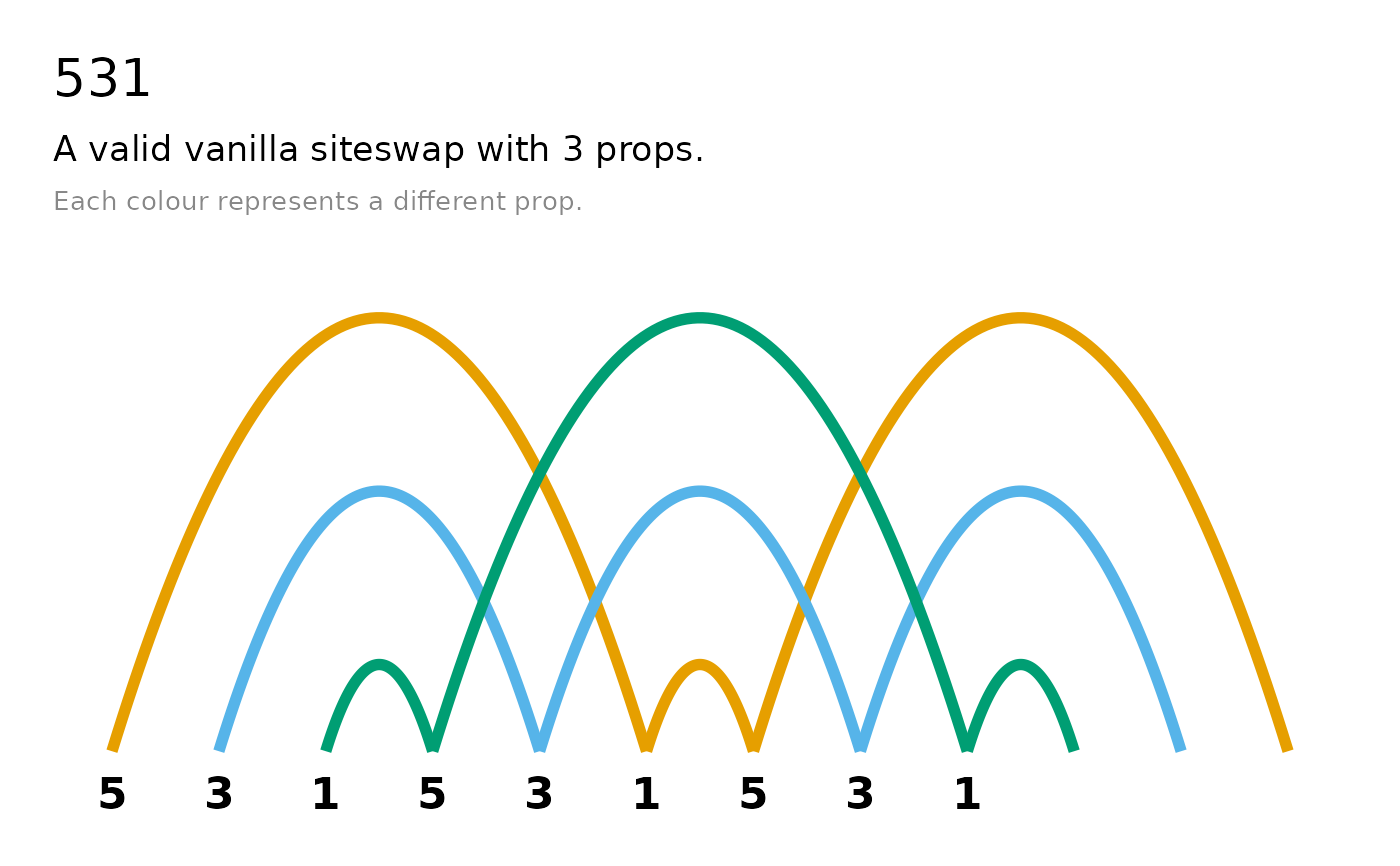

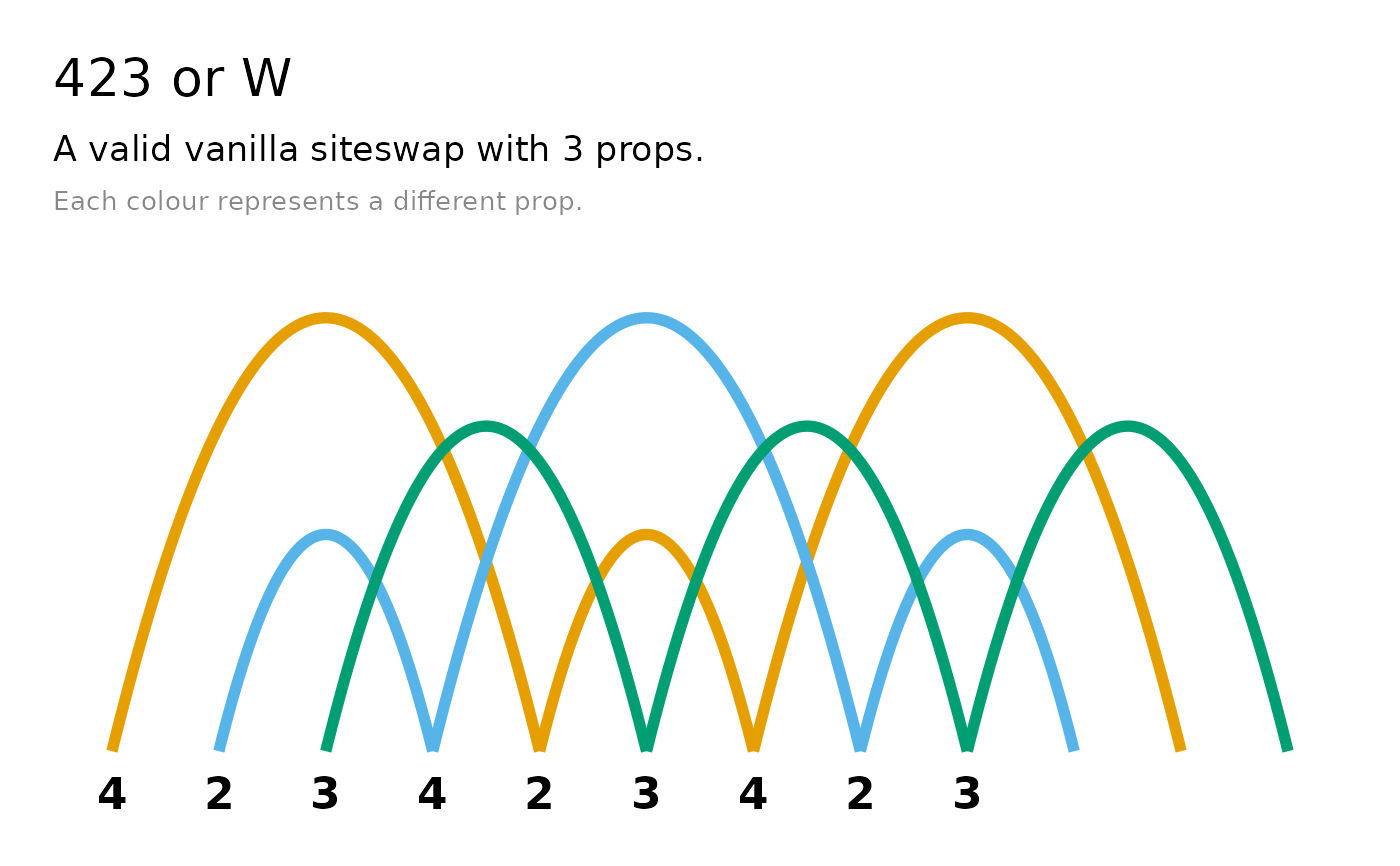

timeline(siteswap("423"))


# Synchronous: two-sided, hands mirrored about a centre line

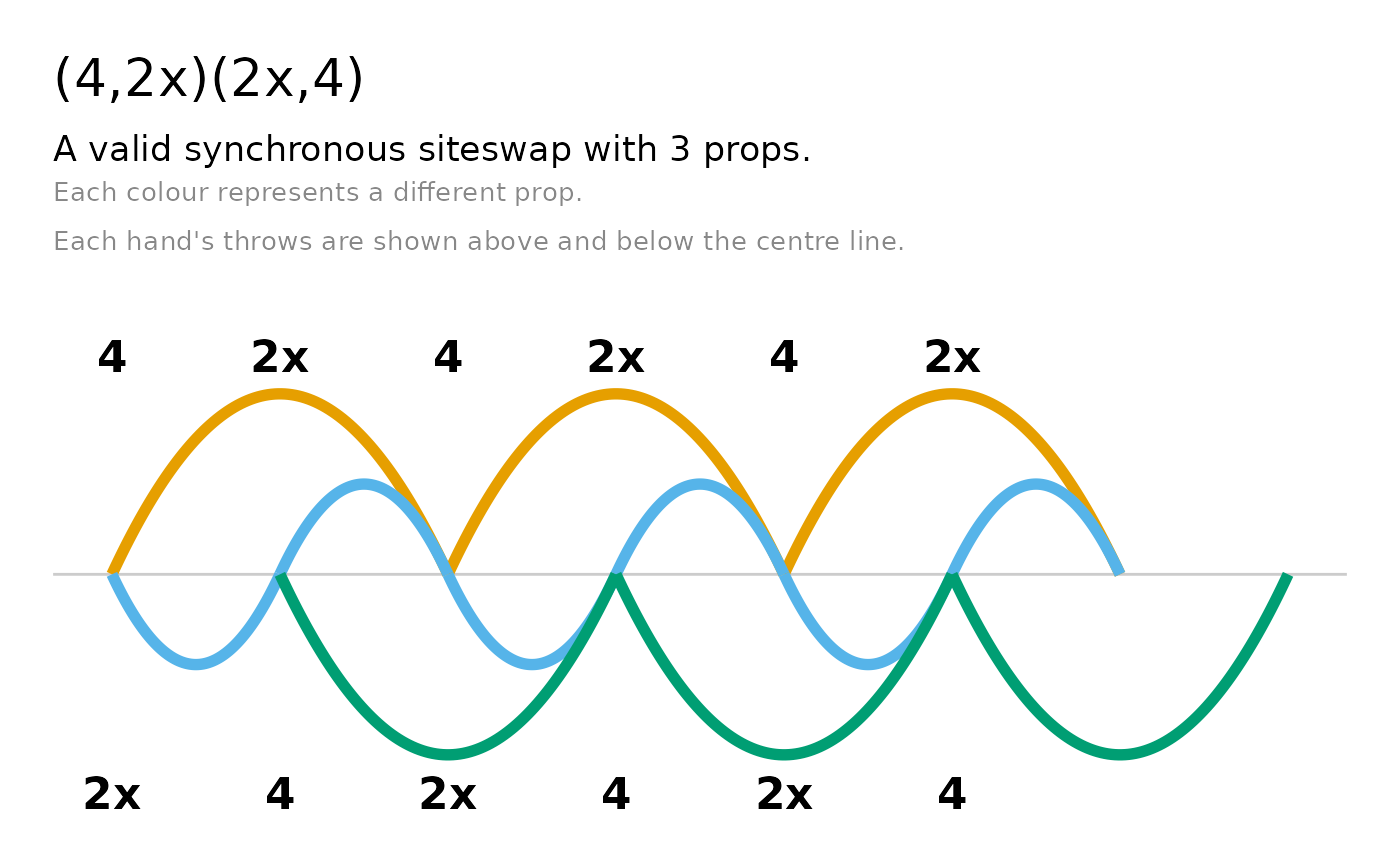

timeline(siteswap("(4,2x)(2x,4)"))

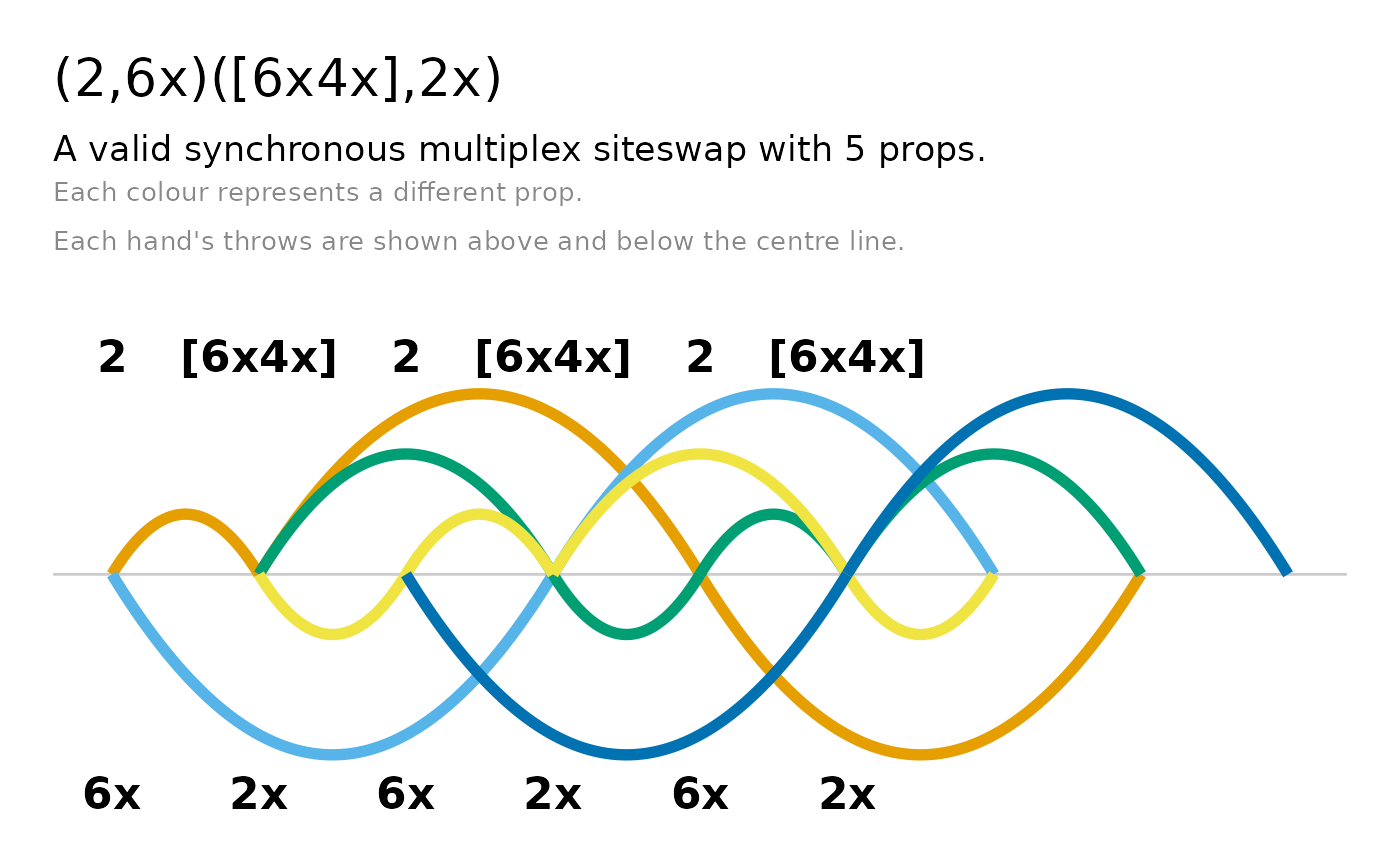

timeline(siteswap("(2,6x)([6x4x],2x)"))


# Multiplex: identical simultaneous throws fan to distinct heights

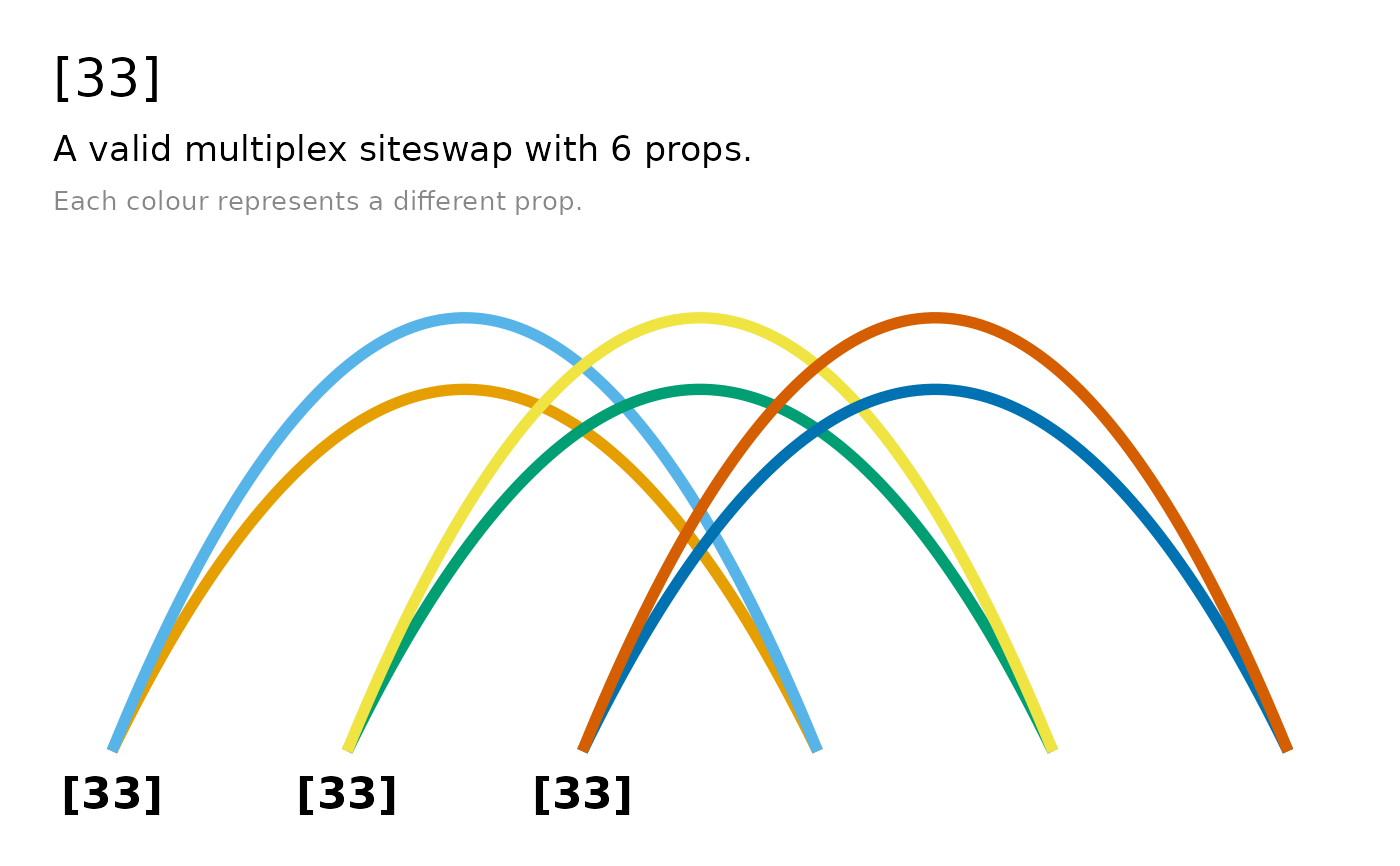

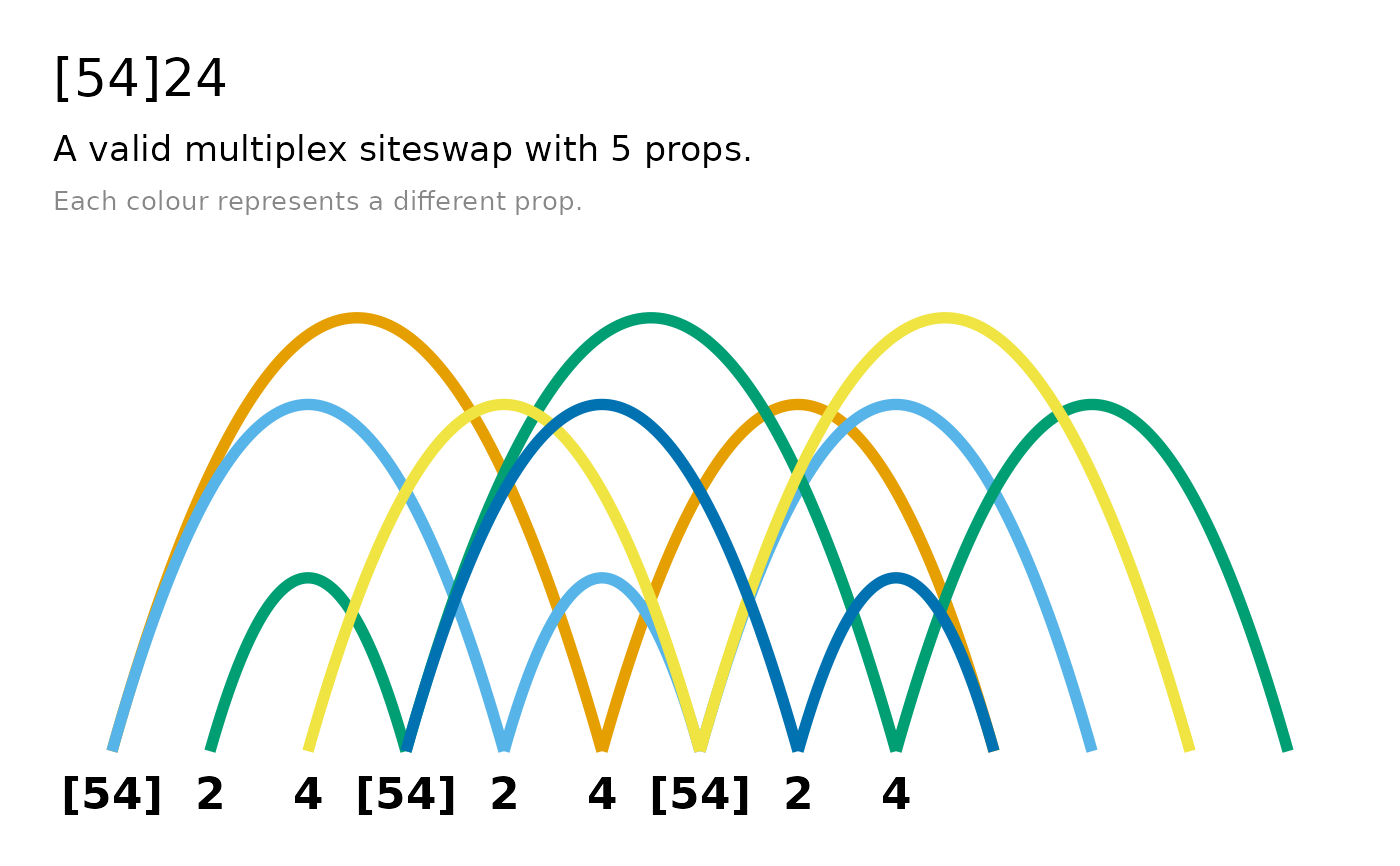

timeline(siteswap("[54]24"))

timeline(siteswap("[33]"))


# Passing: one lane per juggler, with passes arcing between them
timeline(siteswap("<3p 3|3p 3>"))

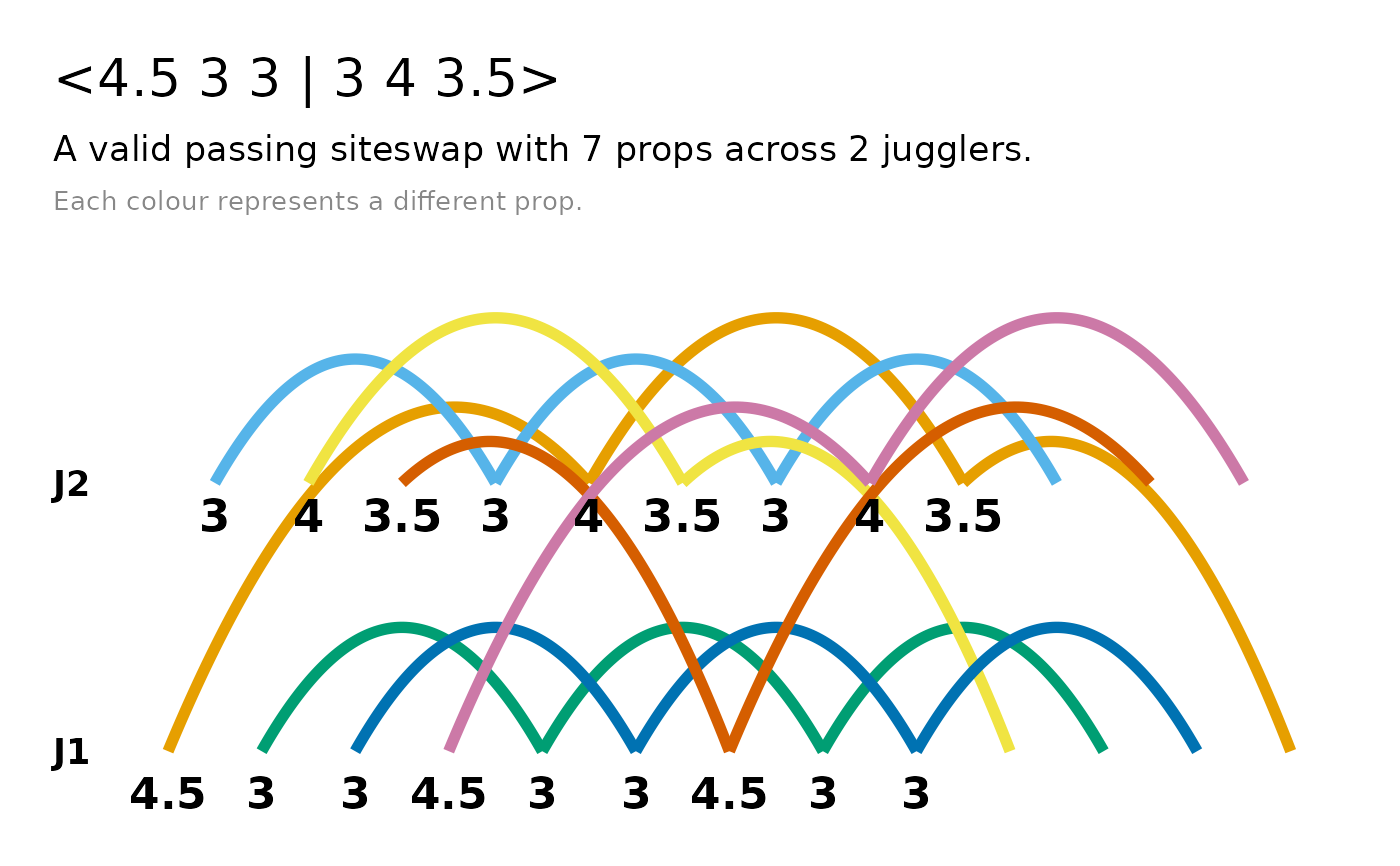

timeline(siteswap("<4.5 3 3 | 3 4 3.5>"))


# Increasing n_cycles helpful for sequences with short period

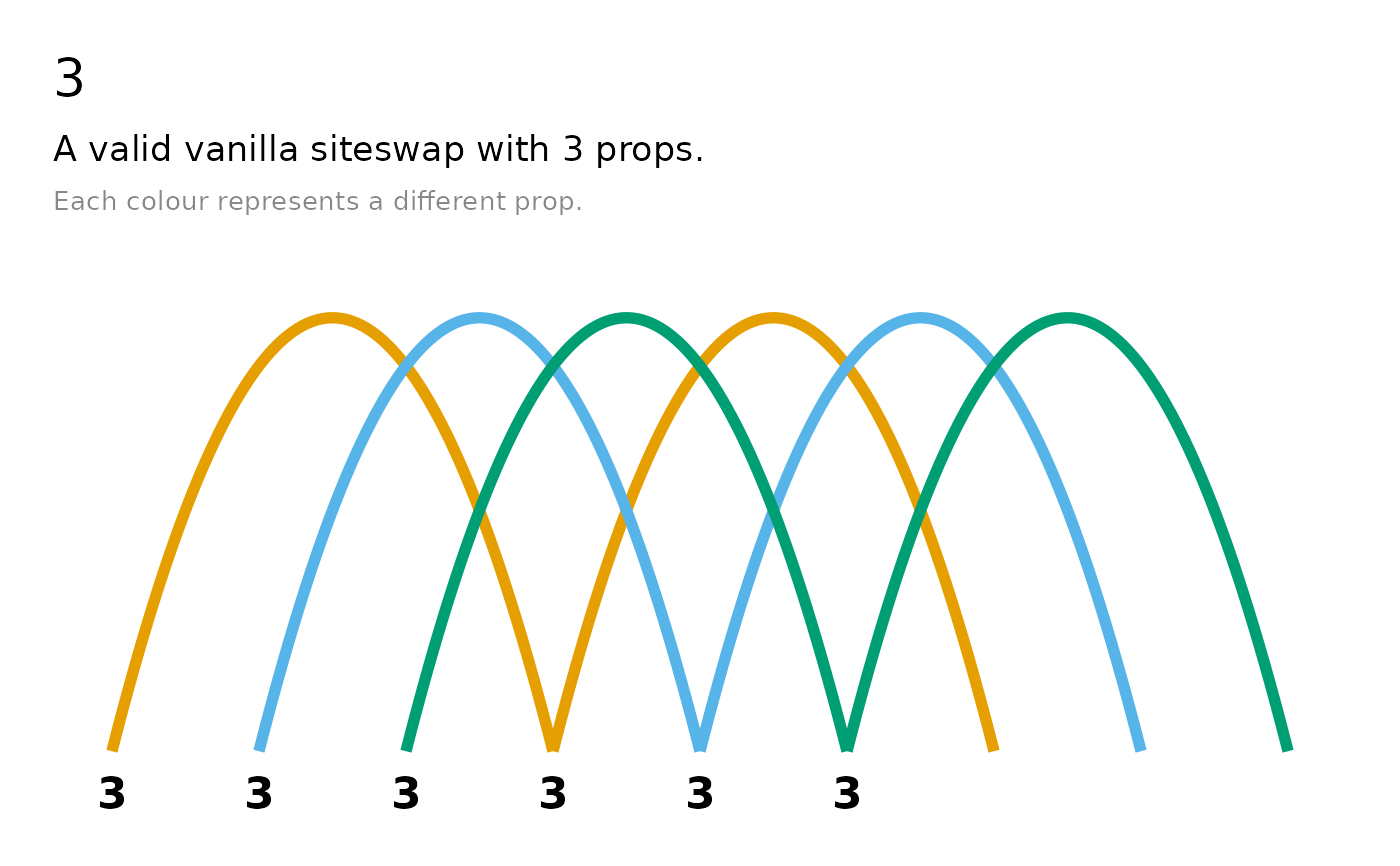

timeline(siteswap("3"), n_cycles = 6)


# ggplot2 object: customise like any other plot
timeline(siteswap("423")) + ggplot2::labs(title = "423 or W")
